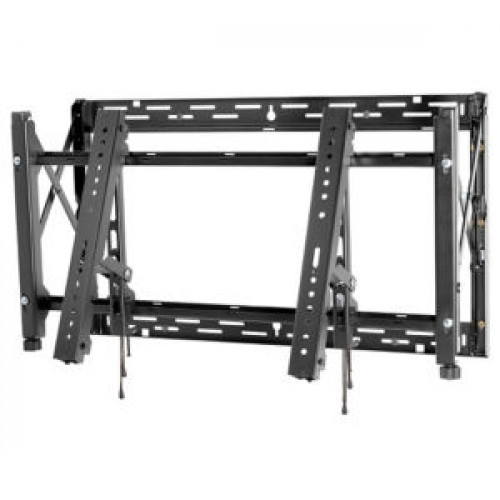

• PEERLESS FULL SERVICE VIDEO WALL MOUNT LANDSCAPE ORIENTATION
SmartMount® Full-Service Video Wall Mount- Landscape.For 40" to 65" Displays * Modular mount for unlimited video wall display configurations * Displays click securely into place against the wall with spring-loaded mechanism * Displays and mounts sit flush against the wall for a clean side appearance * Pull-out/prop-open mechanism provides quick service access * Integrated cable management tie-backs make display-to-display cabling simple * Included security hardware prevents the mount from extending out from the wall * Adjustable VESA® mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm, additional patterns supported with adaptor plates
Brackets_Stands
TYPE Tilt
Mounting
Minimum screen size 101.6 cm (40")
Maximum weight capacity 56.8 kg
Maximum screen size 165.1 cm (65")
Mounting type Wall
Minimum VESA mount 200 x 200 mm
Maximum VESA mount 700 x 400 mm
Number of displays supported 1
Design
Product colour Black
Weight & dimensions
Width 890 mm
Depth 97 mm
Height 508 mm
Weight 15 kg
Weight (imperial) 17.7 kg (39 lbs)
Packaging data
Package width 943 mm
Package depth 108 mm
Package height 565 mm
Package weight 17.2 kg
Technical details
Sustainability certificates RoHS
Other features
Screen size compatibility 1016 - 1651 mm (40 - 65")
Dimensions (WxDxH) 890 x 97 x 508 mm
Logistics data
Harmonized System (HS) code 85299097




PEERLESS FULL SERVICE VIDEO WALL MOUNT LANDSCAPE ORIENTATION

  • Brand: Peerless-AV
  • Product Code: DS-VW765-LAND
  • SRP: https://www.dropbox.com/scl/fi/nm5phf55q64aj5rwmujbc/PEERLESS-DS-VW765-LAND.pdf?dl=0
